Every model year of the Ford F150 has three different variations of cab, 5+ gear ratios per model year, and at least four different engine types. The early 2000’s model also were available with a manual transmission. All of these variations had different towing capacities. Use the tables below to determine the towing capacity for your particular F150. All numbers come directly from the owners manual(s).
Jump to Your Model Year:
2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

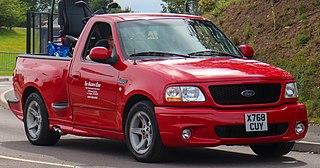

2000 Ford F-150 Towing Capacity
| Regular Cab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 9,000 | 4,800 |
| 4.2 | 3.35 | 10,000 | 5,800 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 6,200 |
| 4.6 | 3.55 | 13,000 | 8,500 |
| 5.4 | 3.31 | 12,000 | 7,500 |
| 5.4 | 3.55 | 13,000 | 8,500 |
| 5.4 | 3.73 | 13,500 | 8,800 |
| SuperCab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,500 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 5,900 |
| 4.6 | 3.55 | 11,500 | 6,900 |
| 5.4 | 3.31 | 12,000 | 7,300 |
| 5.4 | 3.55 | 13,000 | 8,300 |
| 5.4 | 3.73 | 13,500 | 8,700 |
| Harley-Davidson F-150 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 | 3.73 | 10,000 | 4,000 |
| Regular Cab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,600 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 6,500 | 2,200 |
| 4.6 | 3.55 | 7,800 | 3,200 |
| SuperCab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,300 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 6,500 | 1,900 |
| 4.6 | 3.55 | 7,800 | 3,200 |
| 4X4 Regular Cab Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,400 |
| 4.6 | 3.31 | 10,500 | 5,800 |
| 4.6 | 3.55 (16″) | 11,500 | 6,800 |
| 4.6 | 3.55 (17″) | 11,000 | 6,300 |
| 5.4 | 3.31 | 12,000 | 7,200 |
| 5.4 | 3.55 16″ | 13,000 | 8,200 |
| 5.4 | 3.55 17″ | 12,500 | 7,700 |
| 5.4 | 3.73 | 13,500 | 8,400 |
| 4X4 SuperCab Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 10,500 | 5,600 |
| 4.6 | 3.55 16″ | 11,500 | 6,600 |
| 4.6 | 3.55 17″ | 11,000 | 6,100 |
| 5.4 | 3.31 | 12,000 | 6,900 |
| 5.4 | 3.55 16″ | 13,000 | 7,900 |
| 5.4 | 3.55 17″ | 12,500 | 7,400 |
| 5.4 | 3.73 | 13,500 | 8,300 |
| 4X4 Manual Transmission Regular Cab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 6,500 | 1,900 |
| 4.2 | 3.55 | 7,800 | 3,200 |
| 4.6 | 3.31 | 6,500 | 1,800 |
| 4.6 | 3.55 | 7,800 | 3,100 |
| 4X4 Manual Transmission SuperCab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 6,500 | 1,600 |
| 4.6 | 3.55 | 7,800 | 2,900 |
Source: 2000 Ford F-150 Owner’s Manual Pages 165-167

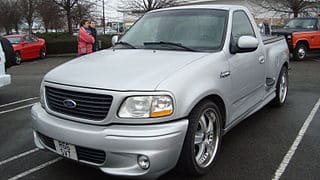

2001 Ford F150 Towing Capacity
| Regular Cab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 9,000 | 4,800 |
| 4.2 | 3.35 | 10,000 | 5,800 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 6,200 |
| 4.6 | 3.55 | 11,500 | 7,200 |
| 5.4 | 3.31 | 12,000 | 7,500 |
| 5.4 | 3.55 | 13,000 | 8,500 |
| 5.4 | 3.73 | 13,500 | 8,800 |
| SuperCab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,500 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 5,900 |
| 4.6 | 3.55 | 11,500 | 6,600 |
| 5.4 | 3.55 | 13,000 | 8,000 |
| 5.4 | 3.73 | 13,500 | 8,700 |
| Harley-Davidson F-150 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 | 3.73 | 10,000 | 4,000 |
| Regular Cab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,300 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 6,500 | 1,900 |
| 4.6 | 3.55 | 7,800 | 3,200 |
| SuperCab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,300 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 6,500 | 1,900 |
| 4.6 | 3.55 | 7,800 | 3,200 |
| 4X4 Regular Cab Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,400 |
| 4.6 | 3.31 | 10,500 | 5,800 |
| 4.6 | 3.55 (16″) | 11,500 | 6,800 |
| 4.6 | 3.55 (17″) | 11,000 | 6,300 |
| 5.4 | 3.31 | 12,000 | 7,200 |
| 5.4 | 3.55 16″ | 13,000 | 8,200 |
| 5.4 | 3.55 17″ | 12,500 | 7,700 |
| 5.4 | 3.73 | 13,500 | 8,400 |
| 4X4 SuperCab Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 10,500 | 5,600 |
| 4.6 | 3.55 16″ | 11,500 | 6,300 |
| 4.6 | 3.55 17″ | 11,000 | 5,800 |
| 5.4 | 3.31 | 12,000 | 6,900 |
| 5.4 | 3.55 16″ | 13,000 | 7,900 |
| 5.4 | 3.55 17″ | 12,500 | 7,400 |
| 5.4 | 3.73 | 13,500 | 8,300 |
| 4X4 Manual Transmission Regular Cab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 6,500 | 1,900 |
| 4.2 | 3.55 | 7,800 | 3,200 |
| 4.6 | 3.31 | 6,500 | 1,800 |
| 4.6 | 3.55 | 7,800 | 3,100 |
| 4X4 Manual Transmission SuperCab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 6,500 | 1,600 |
| 4.6 | 3.55 | 7,800 | 2,900 |
Source: 2001 Ford F-150 Owner’s Manual Pages 176-178

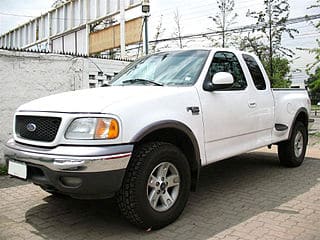

2002 Ford F150 Towing Capacity
| Regular Cab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 9,000 | 4,700 |
| 4.2 | 3.35 | 10,000 | 5,700 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 6,200 |
| 4.6 | 3.55 | 11,500 | 7,200 |
| 5.4 | 3.31 | 12,000 | 7,500 |
| 5.4 | 3.55 | 13,000 | 8,500 |
| 5.4 | 3.73 | 13,500 | 8,800 |
| 5.4 | 4.10 | 15,000 | 8,800 |
| SuperCab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,500 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 5,900 |
| 4.6 | 3.55 | 11,500 | 6,600 |
| 5.4 | 3.31 | 12,000 | 8,000 |
| 5.4 | 3.55 | 13,000 | 8,000 |
| 5.4 | 3.73 | 13,500 | 8,600 |
| 5.4 | 4.10 | 15,000 | 8,600 |
| Regular Cab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,500 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 7,200 | 2,900 |
| 4.6 | 3.55 | 7,800 | 3,500 |
| SuperCab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,300 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 7,200 | 2,600 |
| 4.6 | 3.55 | 7,800 | 3,200 |
| 4X4 Regular Cab Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,400 |
| 4.6 | 3.31 | 10,500 | 5,800 |
| 4.6 | 3.55 (16″) | 11,500 | 6,800 |
| 4.6 | 3.55 (17″) | 11,000 | 6,300 |
| 5.4 | 3.31 | 12,000 | 7,200 |
| 5.4 | 3.55 16″ | 13,000 | 8,200 |
| 5.4 | 3.55 17″ | 12,500 | 7,700 |
| 5.4 | 3.73 | 13,500 | 8,400 |
| 4X4 SuperCab Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 10,500 | 5,600 |
| 4.6 | 3.55 16″ | 11,500 | 6,200 |
| 4.6 | 3.55 17″ | 11,000 | 5,700 |
| 5.4 | 3.31 | 12,000 | 7,000 |
| 5.4 | 3.55 16″ | 13,000 | 7,600 |
| 5.4 | 3.55 17″ | 12,500 | 7,100 |
| 5.4 | 3.73 | 13,500 | 8,200 |
| 4X4 Manual Transmission Regular Cab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 7,200 | 2,600 |
| 4.2 | 3.55 | 7,800 | 3,200 |
| 4.6 | 3.31 | 7,200 | 2,500 |
| 4.6 | 3.55 | 7,800 | 3,100 |
| 4X4 Manual Transmission SuperCab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 7,200 | 2,300 |
| 4.6 | 3.55 | 7,800 | 2,900 |
| Harley-Davidson F-150 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 | 3.73 | 10,000 | 4,500 |
Source: 2002 F150 Owner’s Manual Pages 193-196

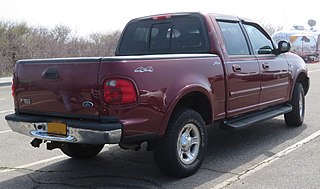

2003 Ford F-150 Towing Capacity
| Regular Cab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 9,000 | 4,700 |
| 4.2 | 3.35 | 10,000 | 5,700 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 6,200 |
| 4.6 | 3.55 | 11,500 | 7,200 |
| 5.4 | 3.31 | 12,000 | 7,600 |
| 5.4 | 3.55 | 13,000 | 8,600 |
| 5.4 | 3.73 | 13,500 | 8,800 |
| 5.4 | 4.10 | 15,000 | 8,800 |
| SuperCab 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,500 |
| 4.6 | 3.08 | 10,000 | 2,000 |
| 4.6 | 3.31 | 10,500 | 5,900 |
| 4.6 | 3.55 | 11,500 | 6,600 |
| 5.4 | 3.31 | 12,000 | 7,300 |
| 5.4 | 3.55 | 13,000 | 8,000 |
| 5.4 | 3.73 | 13,500 | 8,600 |
| 5.4 | 4.10 | 15,000 | 8,600 |
| Regular Cab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,500 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 7,200 | 2,900 |
| 4.6 | 3.55 | 7,800 | 3,500 |
| SuperCab 4×2 w/manual transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.08 | 6,500 | 2,000 |
| 4.2 | 3.55 | 7,800 | 3,300 |
| 4.6 | 3.08 | 6,500 | 2,000 |
| 4.6 | 3.31 | 7,200 | 2,600 |
| 4.6 | 3.55 | 7,800 | 3,200 |
| 4X4 Regular Cab Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,000 | 5,400 |
| 4.6 | 3.31 | 10,500 | 5,800 |
| 4.6 | 3.55 (16″) | 11,500 | 6,800 |
| 4.6 | 3.55 (17″) | 11,000 | 6,300 |
| 5.4 | 3.31 | 12,000 | 7,200 |
| 5.4 | 3.55 16″ | 13,000 | 8,200 |
| 5.4 | 3.55 17″ | 12,500 | 7,700 |
| 5.4 | 3.73 | 13,500 | 8,400 |
| 4X4 SuperCab/Super Crew with Automatic Transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 10,500 | 5,600 |
| 4.6 | 3.55 16″ | 11,500 | 6,200 |
| 4.6 | 3.55 17″ | 11,000 | 5,700 |
| 5.4 | 3.31 | 12,000 | 7,000 |
| 5.4 | 3.55 16″ | 13,000 | 7,600 |
| 5.4 | 3.55 17″ | 12,500 | 7,100 |
| 5.4 | 3.73 | 13,500 | 8,200 |
| 4X4 Manual Transmission Regular Cab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.31 | 7,200 | 2,600 |
| 4.2 | 3.55 | 7,800 | 3,200 |
| 4.6 | 3.31 | 7,200 | 2,500 |
| 4.6 | 3.55 | 7,800 | 3,100 |
| 4X4 Manual Transmission SuperCab | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 | 3.31 | 7,200 | 2,300 |
| 4.6 | 3.55 | 7,800 | 2,900 |
| Harley-Davidson F-150 4×2 w/automatic transmission | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 | 3.73 | 10,000 | 4,500 |
Source: 2003 F-150 Owner’s Guide Pages 166-168

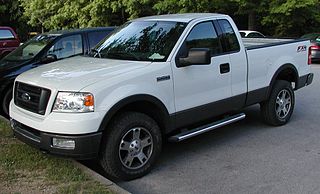

2004 Ford F-150 Towing Capacity
| Regular Cab 4×2 (126” wheelbase) | |||
| Engine | Axle Ratio | Maximum GCWR-LBS kg |
Max Trailer Weight lbs. (kg)
|
| 4.6L | 3.55 | 11500 (5216) | 6500 (2948) |
| 4.6L | 3.73 | 12000 (5443) | 7000 (3175) |
| 5.4L | 3.31 | 12000 (5443) | 6800 (3084) |
| 5.4L (w/17” tires) |
3.55 | 13000 (5897) | 7800 (3538) |
| 5.4L (w/17” tires) |
3.73 | 13500 (6123) | 8300 (3765) |
| Regular Cab 4×2 (145” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6500 |
| 4.6 | 3.73 | 12200 | 7000 |
| 5.4 | 3.31 | 12500 | 7200 |
| 5.4 | 3.55 | 14000 | 8700 |
| 5.4 | 3.73 | 15000 | 9800 |
| 5.4 | 4.10 | 15300 | 9900 |
| Regular Cab 4×4 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6200 |
| 4.6 | 3.73 | 12200 | 6700 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4/18″ | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4/18″ | 3.73 | 14500 | 9000 |
| 5.4 HD | 4.10 | 15300 | 9500 |
| SuperCab 4×2 (133” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 6300 |
| 4.6 | 3.73 | 12000 | 6800 |
| 5.4/17″ | 3.55 | 13000 | 7600 |
| 5.4/18″ | 3.55 | 12500 | 7100 |
| 5.4/17″ | 3.73 | 13500 | 8100 |
| 5.4/18″ | 3.73 | 13000 | 7600 |
| SuperCab 4×2 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6300 |
| 4.6 | 3.73 | 12200 | 6800 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4/18″ | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4/18″ | 3.73 | 14500 | 9000 |
| SuperCab 4×2 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9500 |
| SuperCab 4×4 (133” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 5900 |
| 4.6 | 3.73 | 12000 | 6400 |
| 5.4/17″ | 3.55 | 13000 | 7300 |
| 5.4/18″ | 3.55 | 12500 | 6800 |
| 5.4/17″ | 3.73 | 13500 | 7800 |
| 5.4/18″ | 3.73 | 13000 | 7300 |
| SuperCab 4×4 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6000 |
| 4.6 | 3.73 | 12200 | 6500 |
| 5.4/17″ | 3.55 | 14000 | 8300 |
| 5.4/18″ | 3.55 | 13500 | 7800 |
| 5.4/17″ | 3.73 | 15000 | 9300 |
| 5.4/18″ | 3.73 | 14500 | 8800 |
| SuperCab 4×4 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9300 |
| Crew Cab 4×2 (139” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6200 |
| 4.6 | 3.73 | 12200 | 6700 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4/18″ | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4/18″ | 3.73 | 14500 | 9000 |
Source: 2004 Ford F150 Owner’s Manual Pages 181-186

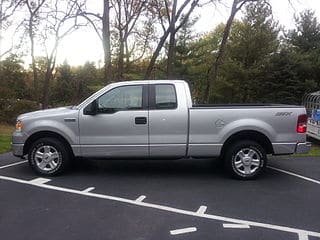

2005 Ford F150 Towing Capacity
| Regular Cab 4×2 (126” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2400 |
| 4.2 L (Manual) | 3.55 | 8500 | 3700 |
| 4.2L (Automatic) | 3.55 | 10000 | 5100 |
| 4.2L (Automatic) | 3.73 | 10500 | 5600 |
| 4.6 | 3.55 | 11500 | 6500 |
| 4.6 | 3.73 | 12000 | 7000 |
| 5.4 | 3.31 | 12000 | 6900 |
| 5.4 | 3.55 | 13000 | 7900 |
| 5.4 | 3.73 | 13500 | 8400 |
| Regular Cab 4×2 (145” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2200 |
| 4.2 L (Manual) | 3.55 | 8500 | 3500 |
| 4.2L (Automatic) | 3.55 | 10000 | 5000 |
| 4.2L (Automatic) | 3.73 | 10500 | 5500 |
| 4.6 | 3.55 | 11700 | 6600 |
| 4.6 | 3.73 | 12200 | 7100 |
| 5.4 | 3.31 | 12500 | 7300 |
| 5.4 | 3.55 | 14000 | 8800 |
| 5.4 | 3.73 | 15000 | 9800 |
| 5.4 (HD) | 4.10 | 15300 | 9900 |
| Regular Cab 4×4 (126” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 6200 |
| 4.6 | 3.73 | 12000 | 6700 |
| 5.4/17″ | 3.55 | 13000 | 7600 |
| 5.4/18″ | 3.55 | 12500 | 7100 |
| 5.4/17″ | 3.73 | 13500 | 8100 |
| 5.4/18″ | 3.73 | 13000 | 7600 |
| Regular Cab 4×4 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6300 |
| 4.6 | 3.73 | 12200 | 6800 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4/18″ | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4/18″ | 3.73 | 14500 | 9000 |
| 5.4 HD | 4.10 | 15300 | 9500 |
| SuperCab 4×2 (133” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 6300 |
| 4.6 | 3.73 | 12000 | 6800 |
| 5.4/17″ | 3.55 | 13000 | 7600 |
| 5.4/18″ | 3.55 | 12500 | 7100 |
| 5.4/17″ | 3.73 | 13500 | 8100 |
| 5.4/18″ | 3.73 | 13000 | 7600 |
| SuperCab 4×2 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6400 |
| 4.6 | 3.73 | 12200 | 6900 |
| 5.4/17″ | 3.55 | 14000 | 8600 |
| 5.4/18″ | 3.55 | 13500 | 8100 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4/18″ | 3.73 | 14500 | 9000 |
| SuperCab 4×2 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9500 |
| SuperCab 4×4 (133” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 6000 |
| 4.6 | 3.73 | 12000 | 6500 |
| 5.4/17″ | 3.55 | 13000 | 7300 |
| 5.4/18″ | 3.55 | 12500 | 6800 |
| 5.4/17″ | 3.73 | 13500 | 7800 |
| 5.4/18″ | 3.73 | 13000 | 7300 |
| SuperCab 4×4 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6100 |
| 4.6 | 3.73 | 12200 | 6600 |
| 5.4/17″ | 3.55 | 14000 | 8300 |
| 5.4/18″ | 3.55 | 13500 | 7800 |
| 5.4/17″ | 3.73 | 15000 | 9300 |
| 5.4/18″ | 3.73 | 14500 | 8800 |
| SuperCab 4×4 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9300 |
| Crew Cab 4×2 (139” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.73 | 12200 | 6500 |
| 5.4/17″ | 3.55 | 14000 | 8200 |
| 5.4/18″ | 3.55 | 13500 | 7700 |
| 5.4/17″ | 3.73 | 15000 | 9200 |
| 5.4/18″ | 3.73 | 14500 | 8700 |
| Crew Cab 4×4 (139” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.73 | 12200 | 6500 |
| 5.4/17″ | 3.55 | 14000 | 8200 |
| 5.4/18″ | 3.55 | 13500 | 7700 |
| 5.4/17″ | 3.73 | 15000 | 9200 |
| 5.4/18″ | 3.73 | 14500 | 8700 |
Source: 2005 Ford F150 Owners Manual Pages 180-184

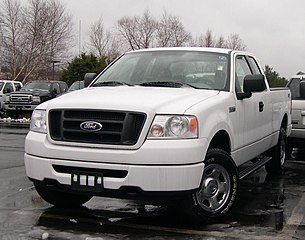

2006 Ford F-150 Towing Capacity
| Regular Cab 4×2 (126” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2400 |
| 4.2 L (Manual) | 3.55 | 8500 | 3700 |
| 4.2L (Automatic) | 3.55 | 10000 | 5200 |
| 4.2L (Automatic) | 3.73 | 10500 | 5700 |
| 4.6 | 3.55 | 11500 | 6600 |
| 4.6 | 3.73 | 12000 | 7100 |
| 5.4 | 3.55 | 13000 | 8000 |
| 5.4 | 3.73 | 13500 | 8500 |
| Regular Cab 4×2 (144.5” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2300 |
| 4.2 L (Manual) | 3.55 | 8500 | 3600 |
| 4.2L (Automatic) | 3.55 | 10000 | 5100 |
| 4.2L (Automatic) | 3.73 | 10500 | 5600 |
| 4.6 | 3.55 | 11700 | 6700 |
| 4.6 | 3.73 | 12200 | 7200 |
| 5.4 | 3.55 | 14000 | 8800 |
| 5.4 | 3.73 | 15000 | 9800 |
| 5.4 (HD) | 4.10 | 15300 | 9900 |
| Regular Cab 4×4 (126” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 6300 |
| 4.6 | 3.73 | 12000 | 6800 |
| 5.4/17″ | 3.55 | 13000 | 7700 |
| 5.4/18″ | 3.55 | 12500 | 7200 |
| 5.4/17″ | 3.73 | 13500 | 8200 |
| 5.4/18″ | 3.73 | 13000 | 7700 |
| Regular Cab 4×4 (144.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6200 |
| 4.6 | 3.73 | 12200 | 6700 |
| 5.4/17″ | 3.55 | 14000 | 8300 |
| 5.4/18″ | 3.55 | 13500 | 7800 |
| 5.4/17″ | 3.73 | 15000 | 9300 |
| 5.4/18″ | 3.73 | 14500 | 8800 |
| 5.4 HD | 4.10 | 15300 | 9500 |
| SuperCab 4×2 (132.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11500 | 6300 |
| 4.6/18″ | 3.55 | 11000 | 5800 |
| 4.6/17″ | 3.73 | 12000 | 6800 |
| 4.6/18″ | 3.73 | 11500 | 6300 |
| 5.4/17″ | 3.55 | 13000 | 7700 |
| 5.4/18″ | 3.55 | 12500 | 7200 |
| 5.4/17″ | 3.73 | 13500 | 8200 |
| 5.4/18″ | 3.73 | 13000 | 7700 |
| SuperCab 4×2 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6400 |
| 4.6/18″ | 3.55 | 11200 | 5900 |
| 4.6/17″ | 3.73 | 12200 | 6900 |
| 4.6/18″ | 3.73 | 11700 | 6400 |
| 5.4/17″ | 3.55 | 14000 | 8600 |
| 5.4 (18″ or 22″) | 3.55 | 13500 | 8100 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18″ or 22″) | 3.73 | 14500 | 9000 |
| SuperCab 4×2 (144.5” wheelbase) Harley Version | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 3.73 | 11500 | 5800 |
| SuperCab 4×2 (162.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9500 |
| SuperCab 4×4 (132.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11500 | 6000 |
| 4.6/18″ | 3.55 | 11000 | 5500 |
| 4.6/17″ | 3.73 | 12000 | 6500 |
| 4.6/18″ | 3.73 | 12500 | 6000 |
| 5.4/17″ | 3.55 | 13000 | 7400 |
| 5.4/18″ | 3.55 | 12500 | 6900 |
| 5.4/17″ | 3.73 | 13500 | 7900 |
| 5.4/18″ | 3.73 | 13000 | 7400 |
| SuperCab 4×4 (144.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6200 |
| 4.6/18″ | 3.55 | 11500 | 5700 |
| 4.6/17″ | 3.73 | 12200 | 6700 |
| 4.6/18″ | 3.73 | 11700 | 6200 |
| 5.4/17″ | 3.55 | 14000 | 8300 |
| 5.4/18″ | 3.55 | 13500 | 7800 |
| 5.4/17″ | 3.73 | 15000 | 9300 |
| 5.4/18″ | 3.73 | 14500 | 8800 |
| SuperCab 4×4 (144.5” wheelbase) Harley Davidson | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 | 3.73 | 11500 | 5600 |
| SuperCab 4×4 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9300 |
| Crew Cab 4×2 (138.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6300 |
| 4.6/18″ | 3.55 | 11500 | 5800 |
| 4.6/17″ | 3.73 | 12200 | 6800 |
| 4.6/18″ | 3.73 | 11700 | 6300 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4/18″ | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4/18″ | 3.73 | 14500 | 9000 |
| Crew Cab 4×4 (138.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.73 | 12200 | 6500 |
| 4.6/18″ | 3.73 | 11700 | 6000 |
| 5.4/17″ | 3.55 | 14000 | 8200 |
| 5.4/18″ | 3.55 | 13500 | 7700 |
| 5.4/17″ | 3.73 | 15000 | 9200 |
| 5.4/18″ | 3.73 | 14500 | 8700 |
| Crew Cab 4×4 (150.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6200 |
Source: 2006 Ford F-150 Owner’s Manual Pages 187-193

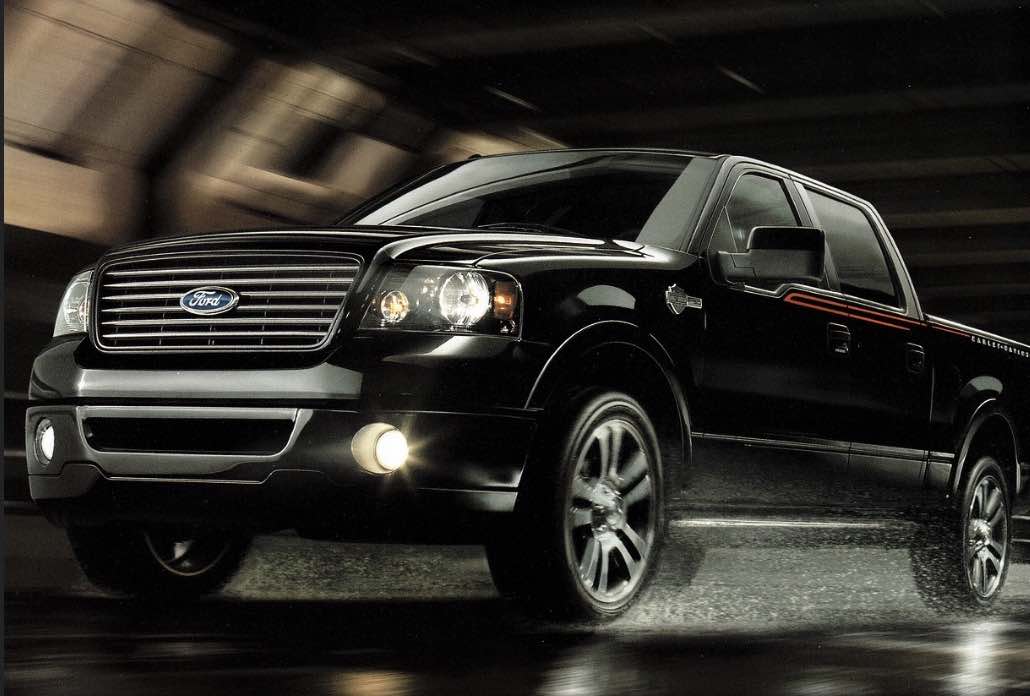

2007 Ford F-150 Towing Capacity
| Regular Cab 4×2 (126” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2400 |
| 4.2 L (Manual) | 3.55 | 8500 | 3700 |
| 4.2L (Automatic) | 3.55 | 10000 | 5100 |
| 4.2L (Automatic) | 3.73 | 10500 | 5600 |
| 4.6 | 3.55 | 11500 | 6600 |
| 4.6 | 3.73 | 12000 | 7100 |
| 5.4 | 3.55 | 13000 | 8000 |
| 5.4 | 3.73 | 13500 | 8500 |
| Regular Cab 4×2 (144.5” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2300 |
| 4.2 L (Manual) | 3.55 | 8500 | 3600 |
| 4.2L (Automatic) | 3.55 | 10000 | 5000 |
| 4.2L (Automatic) | 3.73 | 10500 | 5500 |
| 4.6 | 3.55 | 11700 | 6700 |
| 4.6 | 3.73 | 12200 | 7200 |
| 5.4 | 3.55 | 14000 | 8800 |
| 5.4 | 3.73 | 15000 | 9800 |
| 5.4 (HD XL) | 4.10 | 16400 | 11000 |
| 5.4 (HD XLT) | 4.10 | 15800 | 10400 |
| Regular Cab 4×4 (126” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 6300 |
| 4.6 | 3.73 | 12000 | 6800 |
| 5.4/17″ | 3.55 | 13000 | 7700 |
| 5.4/18″ | 3.55 | 12500 | 7200 |
| 5.4/17″ | 3.73 | 13500 | 8200 |
| 5.4/18″ | 3.73 | 13000 | 7700 |
| Regular Cab 4×4 (144.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6400 |
| 4.6 | 3.73 | 12200 | 6900 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4 (18″-20″) | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18″-20″) | 3.73 | 14500 | 9000 |
| 5.4 HD | 4.10 | 15300 | 9500 |
| SuperCab 4×2 (132.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11500 | 6300 |
| 4.6/18″ | 3.55 | 11000 | 5800 |
| 4.6/17″ | 3.73 | 12000 | 6800 |
| 4.6/18″ | 3.73 | 11500 | 6300 |
| 5.4/17″ | 3.55 | 13000 | 7600 |
| 5.4/18″ | 3.55 | 12500 | 7100 |
| 5.4/17″ | 3.73 | 13500 | 8100 |
| 5.4/18″ | 3.73 | 13000 | 7600 |
| SuperCab 4×2 (144.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6500 |
| 4.6/18″ | 3.55 | 11200 | 6000 |
| 4.6/17″ | 3.73 | 12200 | 7000 |
| 4.6/18″ | 3.73 | 11700 | 6500 |
| 5.4/17″ | 3.55 | 14000 | 8600 |
| 5.4 (18″ or 20″) | 3.55 | 13500 | 8100 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18″ or 20″) | 3.73 | 14500 | 9000 |
| SuperCab 4×2 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9500 |
| SuperCab 4×4 (132.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11500 | 6000 |
| 4.6/18″ | 3.55 | 11000 | 5500 |
| 4.6/17″ | 3.73 | 12000 | 6500 |
| 4.6/18″ | 3.73 | 11500 | 6000 |
| 5.4/17″ | 3.55 | 13000 | 7300 |
| 5.4/18″ | 3.55 | 12500 | 6800 |
| 5.4/17″ | 3.73 | 13500 | 7800 |
| 5.4/18″ | 3.73 | 13000 | 7300 |
| SuperCab 4×4 (144.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6200 |
| 4.6/18″ | 3.55 | 11200 | 5700 |
| 4.6/17″ | 3.73 | 12200 | 6700 |
| 4.6/18″ | 3.73 | 11700 | 6200 |
| 5.4/17″ | 3.55 | 14000 | 8300 |
| 5.4/18″ | 3.55 | 13500 | 7800 |
| 5.4/17″ | 3.73 | 15000 | 9300 |
| 5.4/18″ | 3.73 | 14500 | 8800 |
| SuperCab 4×4 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9300 |
| Crew Cab 4×2 (138.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6400 |
| 4.6 (18 or 20″) | 3.55 | 11200 | 5900 |
| 4.6/17″ | 3.73 | 12200 | 6900 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6400 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 9000 |
| Crew Cab 4×2 (139″ Wheelbase) Harley Davidson | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 | 3.73 | 11000 | 5300 |
| Crew Cab 4×4 (138.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.73 | 12200 | 6600 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6100 |
| 5.4/17″ | 3.55 | 14000 | 8200 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 7700 |
| 5.4/17″ | 3.73 | 15000 | 9200 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 8700 |
| Crew Cab 4×2 (139″ Wheelbase) Harley Davidson | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 | 3.73 | 11000 | 5100 |
| Crew Cab 4×2 (150.5” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6200 |
| 4.6 (18 or 20″) | 3.55 | 11200 | 5700 |
| 4.6/17″ | 3.73 | 12200 | 6700 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6200 |
| 5.4/17″ | 3.55 | 14000 | 8400 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 7900 |
| 5.4/17″ | 3.73 | 15000 | 9400 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 8900 |
|
Crew Cab 4×4 (150.5” wheelbase) |
|||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.73 | 12200 | 6500 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6000 |
| 5.4/17″ | 3.55 | 14000 | 8100 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 7600 |
| 5.4/17″ | 3.73 | 15000 | 9100 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 8600 |
Source: 2007 Ford F-150 Owner’s Manual Pages 225-232

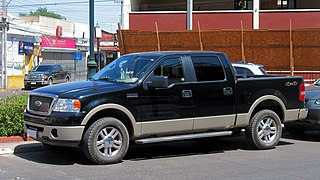

2008 Ford F150 Towing Capacity
| Regular Cab 4×2 (126” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2400 |
| 4.2 L (Manual) | 3.55 | 8500 | 3700 |
| 4.2L (Automatic) | 3.55 | 10000 | 5200 |
| 4.2L (Automatic) | 3.73 | 10500 | 5700 |
| 4.6 | 3.55 | 11500 | 6600 |
| 4.6 | 3.73 | 12000 | 7100 |
| 5.4 | 3.55 | 13000 | 8000 |
| 5.4 | 3.73 | 13500 | 8500 |
| Regular Cab 4×2 (145” wheelbase) | |||
| Engine Size (Litres) | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.2 L (Manual) | 3.31 | 7200 | 2300 |
| 4.2 L (Manual) | 3.55 | 8500 | 3600 |
| 4.2L (Automatic) | 3.55 | 10000 | 5100 |
| 4.2L (Automatic) | 3.73 | 10500 | 5600 |
| 4.6 | 3.55 | 11700 | 6700 |
| 4.6 | 3.73 | 12200 | 7200 |
| 5.4 | 3.55 | 14000 | 8900 |
| 5.4 | 3.73 | 15000 | 9800 |
| 5.4 (HD XL) | 4.10 | 16400 | 11000 |
| 5.4 (HD XLT) | 4.10 | 15800 | 10400 |
| Regular Cab 4×4 (126” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11500 | 6300 |
| 4.6 | 3.73 | 12000 | 6800 |
| 5.4/17″ | 3.55 | 13000 | 7700 |
| 5.4/18″ | 3.55 | 12500 | 7200 |
| 5.4/17″ | 3.73 | 13500 | 8200 |
| 5.4/18″ | 3.73 | 13000 | 7700 |
| Regular Cab 4×4 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6 | 3.55 | 11700 | 6400 |
| 4.6 | 3.73 | 12200 | 6900 |
| 5.4/17″ | 3.55 | 14000 | 8600 |
| 5.4 (18″-20″) | 3.55 | 13500 | 8100 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18″-20″) | 3.73 | 14500 | 9000 |
| 5.4 HD | 4.10 | 15300 | 9500 |
| SuperCab 4×2 (133” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11500 | 6400 |
| 4.6/18″ | 3.55 | 11000 | 5900 |
| 4.6/17″ | 3.73 | 12000 | 5900 |
| 4.6/18″ | 3.73 | 11500 | 6400 |
| 5.4/17″ | 3.55 | 13000 | 7700 |
| 5.4/18″ | 3.55 | 12500 | 7200 |
| 5.4/17″ | 3.73 | 13500 | 8200 |
| 5.4/18″ | 3.73 | 13000 | 7700 |
| SuperCab 4×2 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6500 |
| 4.6/18″ | 3.55 | 11200 | 6000 |
| 4.6/17″ | 3.73 | 12200 | 7000 |
| 4.6/18″ | 3.73 | 11700 | 6500 |
| 5.4/17″ | 3.55 | 14000 | 8700 |
| 5.4 (18″ or 20″) | 3.55 | 13500 | 8200 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18″ or 20″) | 3.73 | 14500 | 9000 |
| SuperCab 4×2 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9500 |
| SuperCab 4×4 (133” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11500 | 6000 |
| 4.6/18″ | 3.55 | 11000 | 5600 |
| 4.6/17″ | 3.73 | 12000 | 6600 |
| 4.6/18″ | 3.73 | 11500 | 6100 |
| 5.4/17″ | 3.55 | 13000 | 7400 |
| 5.4/18″ | 3.55 | 12500 | 6900 |
| 5.4/17″ | 3.73 | 13500 | 7900 |
| 5.4/18″ | 3.73 | 13000 | 7400 |
| SuperCab 4×4 (145” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6200 |
| 4.6/18″ | 3.55 | 11200 | 5700 |
| 4.6/17″ | 3.73 | 12200 | 6700 |
| 4.6/18″ | 3.73 | 11700 | 6200 |
| 5.4/17″ | 3.55 | 14000 | 8400 |
| 5.4/18″ | 3.55 | 13500 | 7900 |
| 5.4/17″ | 3.73 | 15000 | 9400 |
| 5.4/18″ | 3.73 | 14500 | 8900 |
| SuperCab 4×4 (163” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 HD | 4.1 | 15300 | 9300 |
| Crew Cab 4×2 (139” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6400 |
| 4.6/18″ | 3.55 | 11200 | 5900 |
| 4.6/17″ | 3.73 | 12200 | 6900 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6400 |
| 5.4/17″ | 3.55 | 14000 | 8600 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 8100 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 9000 |
| Crew Cab 4×2 (139″ Wheelbase) Harley Davidson | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 | 3.73 | 11000 | 5300 |
| Crew Cab 4×4 (139” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.73 | 12200 | 6600 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6100 |
| 5.4/17″ | 3.55 | 14000 | 8300 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 7800 |
| 5.4/17″ | 3.73 | 15000 | 9300 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 8800 |
| Crew Cab 4×2 (139″ Wheelbase) Harley Davidson | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 5.4 | 3.73 | 11000 | 5100 |
| Crew Cab 4×2 (157” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.55 | 11700 | 6300 |
| 4.6 (18 or 20″) | 3.55 | 11200 | 5800 |
| 4.6/17″ | 3.73 | 12200 | 6800 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6300 |
| 5.4/17″ | 3.55 | 14000 | 8500 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 8000 |
| 5.4/17″ | 3.73 | 15000 | 9500 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 9000 |
| Crew Cab 4×4 (157” wheelbase) | |||
| Engine Size (Litres) Tire Size | Rear Axle Ratio | Max GCWR (lbs) |
Max Trailer Weight (lbs)
|
| 4.6/17″ | 3.73 | 12200 | 6600 |
| 4.6 (18 or 20″) | 3.73 | 11700 | 6100 |
| 5.4/17″ | 3.55 | 14000 | 8200 |
| 5.4 (18 or 20″) | 3.55 | 13500 | 7700 |
| 5.4/17″ | 3.73 | 15000 | 9200 |
| 5.4 (18 or 20″) | 3.73 | 14500 | 8700 |
Source: 2008 Ford R-150 Owner’s Manual Pages 244-253

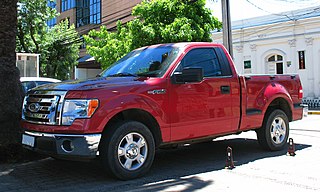

2009 Ford F-150 Towing Capacity
| Regular Cab 4×2 (126″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.2 | 3.55 | 10,400 | 5,400 |
| 4.2 | 3.73 | 10,900 | 5,900 |
| Regular Cab 4×4 (126″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.73 | 10900 | 5700 |
| 4.6 3V | 3.55 | 12900 | 7700 |
| 4.6 3V | 3.73 | 13300 | 8000 |
| 5.4 | 3.31 | 13000 | 7700 |
| 5.4 | 3.55 | 13900 | 8600 |
| 5.4 | 3.73 | 13900 | 8600 |
| Regular Cab 4×2 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5500 |
| 4.6 2V | 3.73 | 11100 | 6000 |
| 4.6 3V | 3.31 | 13100 | 8000 |
| 4.6 3V | 3.55 | 13600 | 8400 |
| 5.4 | 3.15 | 13200 | 8000 |
| 5.4 | 3.55 | 15000 | 9800 |
| 5.4 HD | 3.73 | 16700 | 11300 |
| Regular Cab 4×4 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.73 | 11100 | 5500 |
| 4.6 3V | 3.55 | 13100 | 7800 |
| 4.6 3V | 3.73 | 12600 | 8200 |
| 5.4 | 3.31 | 13200 | 7800 |
| 5.4 | 3.55 | 15000 | 9500 |
| 5.4 | 3.73 | 15000 | 9500 |
| 5.4 HD | 3.73 | 17000 | 11300 |
| SuperCab 4×2 (133″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10400 | 5200 |
| 4.6 2V | 3.73 | 10900 | 5700 |
| 4.6 3V | 3.31 | 13000 | 7800 |
| 4.6 3V | 3.55 | 13500 | 8200 |
| 5.4 | 3.15 | 13200 | 7800 |
| 5.4 | 3.55 | 14000 | 8600 |
| SuperCab 4×4 (133″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.73 | 10900 | 5400 |
| 4.6 3V | 3.55 | 13000 | 7500 |
| 4.6 3V | 3.73 | 13500 | 8000 |
| 5.4 | 3.31 | 13200 | 7600 |
| 5.4 | 3.55 | 14000 | 8400 |
| 5.4 | 3.73 | 14000 | 8400 |
| SuperCab 4×2 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5300 |
| 4.6 2V | 3.73 | 11100 | 5800 |
| 4.6 3V | 3.31 | 13500 | 8200 |
| 4.6 3V | 3.55 | 14900 | 9500 |
| 5.4 | 3.15 | 14000 | 8600 |
| 5.4 | 3.55 | 15200 | 9800 |
| 5.4 | 3.73 | 16900 | 11300 |
| SuperCab 4×4 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.73 | 11100 | 5500 |
| 4.6 3V | 3.55 | 13500 | 7900 |
| 4.6 3V | 3.73 | 15100 | 9400 |
| 5.4 | 3.31 | 14000 | 8300 |
| 5.4 | 3.55 | 15400 | 9700 |
| 5.4 | 3.73 | 15400/17100 (max tow) |
9700/11200(max tow)
|
| SuperCab 4×2 (163″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 HD | 3.73 | 17100 | 11300 |
| SuperCab 4×4 (163″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 HD | 3.73 | 17100 | 11000 |
| SuperCrew 4×2 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5200 |
| 4.6 2V | 3.73 | 11000 | 5700 |
| 4.6 3V | 3.31 | 13500 | 8100 |
| 4.6 3V | 3.55 | 14900 | 9500 |
| 4.6 3V | 3.15 | 13000 | 7500 |
| 5.4 | 3.15 | 14000 | 8500 |
| 5.4 | 3.55 | 15300 | 9800 |
| 5.4 | 3.73 | 16900 | 11300 |
| SuperCrew 4×4 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 3V | 3.55 | 13500 | 7700 |
| 4.6 3V | 3.73 | 15100 | 9300 |
| 5.4 | 3.31 | 14000 | 8200 |
| 5.4 | 3.55 | 15500 | 9700 |
| 5.4 | 3.73 | 15500 / 17100 Max Trailer |
9700 / 11200 Max Trailer
|
| SuperCrew 4×2 (157″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5100 |
| 4.6 2V | 3.73 | 11100 | 5600 |
| 4.6 3V | 3.31 | 13500 | 8000 |
| 4.6 3V | 3.55 | 14900 | 9300 |
| 5.4 | 3.15 | 14000 | 8400 |
| 5.4 | 3.55 | 15300 | 9700 |
| SuperCrew 4×4 (157″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 3V | 3.31 | 13500 | 7600 |
| 4.6 3V | 3.55 | 15100 | 9200 |
| 5.4 | 14000 | 8100 | |
| 5.4 | 15500 | 9600 | |
| 5.4 | 15500/17100 (max tow) |
9600/11100 (max tow)
|
|
Source: 2009 Ford F-150 Owner’s Manual Pages 251-256

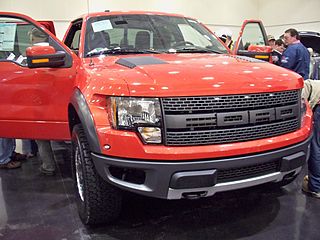

2010 Ford F150 Towing Capacity
| Regular Cab 4×2 (126″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10,400 | 5,400 |
| 4.6 2V | 3.73 | 10,900 | 5,900 |
| Regular Cab 4×4 (126″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.73 | 10900 | 5700 |
| 4.6 3V | 3.55 | 12900 | 7700 |
| 4.6 3V | 3.73 | 13300 | 8000 |
| 5.4 | 3.31 | 13000 | 7700 |
| 5.4 | 3.55 | 13900 | 8600 |
| 5.4 | 3.73 | 13900 | 8600 |
| Regular Cab 4×2 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5500 |
| 4.6 2V | 3.73 | 11100 | 6000 |
| 4.6 3V | 3.31 | 13100 | 8000 |
| 4.6 3V | 3.55 | 13600 | 8400 |
| 5.4 | 3.15 | 13200 | 8000 |
| 5.4 | 3.55 | 15000 | 9800 |
| 5.4 HD | 3.73 | 16700 | 11300 |
| Regular Cab 4×4 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.73 | 11100 | 5800 |
| 4.6 3V | 3.55 | 13100 | 7700 |
| 4.6 3V | 3.73 | 13600 | 8200 |
| 5.4 | 3.31 | 13200 | 7700 |
| 5.4 | 3.55 | 15000 | 9500 |
| 5.4 | 3.73 | 15000 | 9500 |
| 5.4 HD | 3.73 | 17000 | 11300 |
| SuperCab 4×2 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5300 |
| 4.6 2V | 3.73 | 11100 | 5800 |
| 4.6 3V | 3.31 | 13500 | 8100 |
| 4.6 3V | 3.55 | 14900 | 9500 |
| 5.4 | 3.15 | 14000 | 8600 |
| 5.4 | 3.55 | 15200 | 9800 |
| 5.4 | 3.73 | 16900 | 11300 |
| SuperCab 4×4 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.73 | 11100 | 5500 |
| 4.6 3V | 3.55 | 13500 | 7900 |
| 4.6 3V | 3.73 | 15100 | 9400 |
| 5.4 | 3.31 | 14000 | 8300 |
| 5.4 | 3.55 | 15400 | 9700 |
| 5.4 | 3.73 | 15400/17100 (max tow) |
9700/11200(max tow)
|
| SuperCab 4×2 (163″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 HD | 3.73 | 17100 | 11300 |
| SuperCab 4×4 (163″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 HD | 3.73 | 17100 | 11000 |
| SuperCrew 4×2 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5200 |
| 4.6 2V | 3.73 | 11000 | 5700 |
| 4.6 3V | 3.15 | 13000 | 7500 |
| 4.6 3V | 3.31 | 13500 | 8100 |
| 4.6 3V | 3.55 | 14900 | 9400 |
| 5.4 | 3.15 | 14000 | 8500 |
| 5.4 | 3.55 | 15300 | 9800 |
| 5.4 | 3.73 | 16900 | 11300 |
| SuperCrew 4×2 (145″) Wheelbase Harley Davidson | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 | 3.73 | 11200 | 5300 |
| SuperCrew 4×4 (145″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 3V | 3.55 | 13500 | 7700 |
| 4.6 3V | 3.73 | 15100 | 9300 |
| 5.4 | 3.31 | 14000 | 8100 |
| 5.4 | 3.55 | 15500 | 9700 |
| 5.4 | 3.73 | 15500 / 17100 Max Trailer |
9600 / 11200 Max Trailer
|
| SuperCrew 4×4 (145″) Wheelbase Harley Davidson | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 5.4 | 3.73 | 11200 | 5100 |
| SuperCrew 4×2 (157″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 2V | 3.55 | 10600 | 5100 |
| 4.6 2V | 3.73 | 11100 | 5600 |
| 4.6 3V | 3.31 | 13500 | 8000 |
| 4.6 3V | 3.55 | 14900 | 9300 |
| 5.4 | 3.15 | 14000 | 8400 |
| 5.4 | 3.55 | 15300 | 9700 |
| 5.4 | 3.73 | 17000 | 11300 |
| SuperCrew 4×4 (157″) Wheelbase | |||
| Engine Size (in Litres) | Rear Axle Gear Ratio | Max GCWR-kg (lbs) |
Max Trailer Weight lbs.
|
| 4.6 3V | 3.31 | 13500 | 7600 |
| 4.6 3V | 3.55 | 15100 | 9200 |
| 5.4 | 3.31 | 14000 | 8000 |
| 5.4 | 3.55/3.73 | 15500 | 9500 |
| 5.4 HD | 3.73 | 17100 | 11100 |
Source: 2010 Ford F-150 Owner’s Manual Pages 257-261
