2L, 4H, and 4L: F-250 Drive Modes Explained Quick

2H, 4H, and 4L describe different drive modes in which you can engage your Ford F-250 Super Duty’s four-wheel drive system.  We’ll briefly explain what each means so you can get you navigating slippery terrain as soon as possible.

F-250 Drive Modes Explained

F-250 Drive Modes: Quick Reference

Drive ModeBest For
2H (2 Wheel Drive, High Gear)Everyday Driving, Dry Pavement
4H (4 Wheel Drive, High Gear)Most Low Traction Situations
4L (4 Wheel Drive, Low Gear)Low Speed, Low Traction, Only for Off-Road

Two (and sometimes three) modes turn on four-wheel drive, and they are each designated for certain situations.

2H and 4A are the only modes you should use if there isn’t low traction.  Using 4L and 4H on dry pavement can damage the F-250’s four-wheel drive system.

A 4A, 4H, or 4L light will illuminate in your instrument cluster, letting you know that the system has shifted into a four-wheel drive.  The 2H light will flash when you shift back to 2H, but it won’t stay on.

For smoother four-wheel drive shifts, release the accelerator pedal.


2H Mode (2 Wheels, High Gear)

2H is what you should be driving your F-250 around in usually.  It transfers power to the rear wheels only.  The four-wheel drive system can send power to the front and rear wheels if you need increased traction.

2H is best for every day driving where rear traction is not an issue.


4H Mode (4 Wheels, High Gear)

4H mode transfers power to the front and rear axles.  The gearing doesn’t change, and you can drive your F-250 as you usually would.  The steering wheel will feel heavier, and you’ll feel the torque in it.

4H is best for most off-road conditions and heavy snow


4L Mode (4 Wheels, Low Gear)

4L is for extreme off-road conditions where increased torque can get you out of a jam, such as extreme off-road situations like deep sand or rock crawling.

Four low doesn’t work for street driving, as the truck will redline too fast.

Shifting the F-250 into 4L

To shift your F-250 into 4L, you must:

  • Bring the truck’s speed to 3MPH or less (stopped is best)
  • Shift into neutral

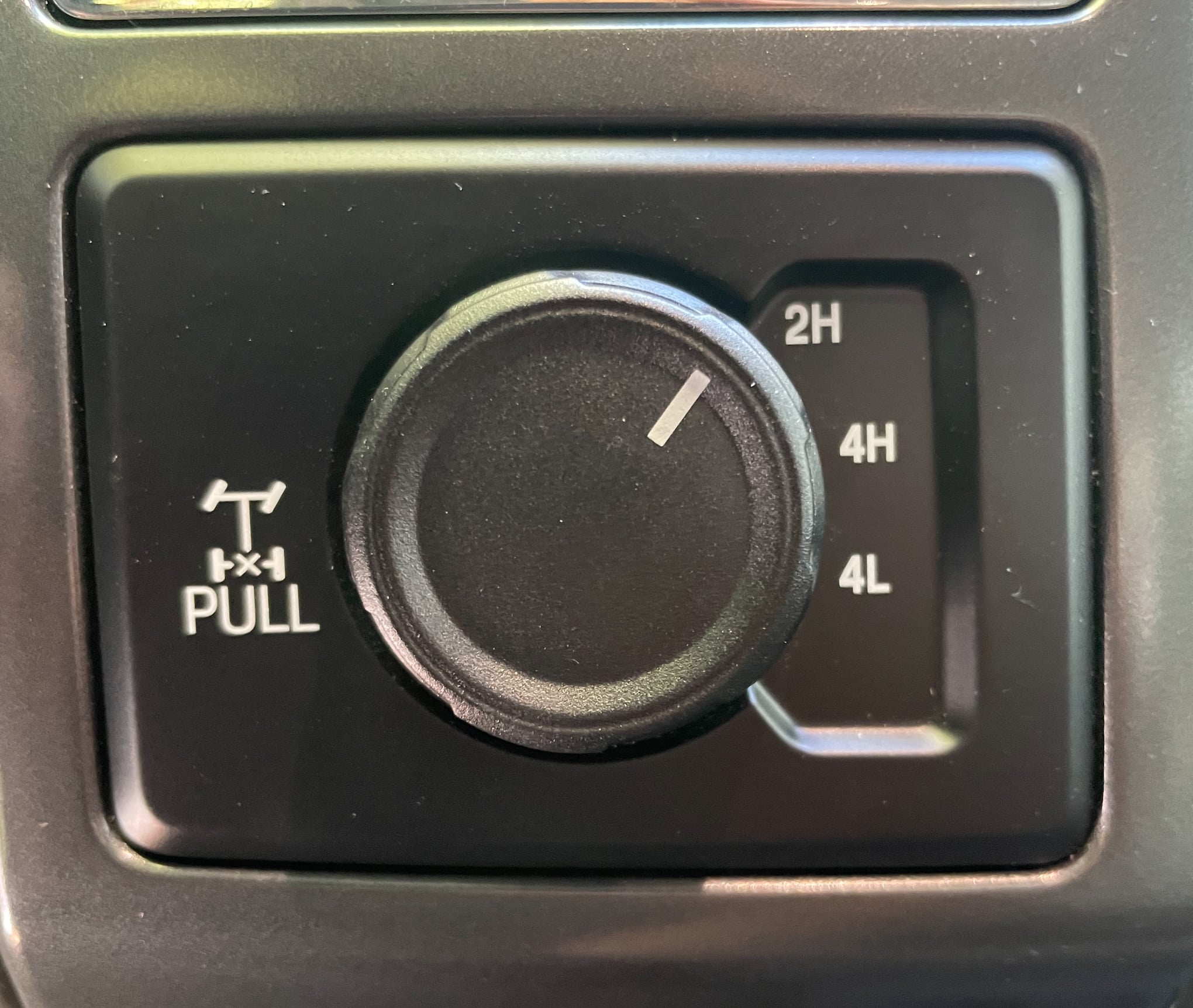

  • Press the 4L button (or turn the nob to 4L, depending on the model year)
  • Once the shift in progress message goes away, you’re good to go

4A Mode (4 Wheels, Automatic Engagement)

4A meaning F-250

4A adapts to road conditions and engages 4-wheel drive when needed. If no rear wheel slippage is detected, engine power will only go to the rear wheels.

4A is not available on the Super Duty as of the 2022 model year (when this article was written), but we’ve left it on here in case it makes its way over from the F-150’s drive modes one day.


Electronic Locking Differential

The 4WD selector nob may have a button you can push to activate the electronic locking differential.  If it does, you can pull it, and both rear wheels will lock (spin at the same speed), which increases traction.
